SP Series – Oil less Rocking Piston Type Vacuum Pump
PHOTOS

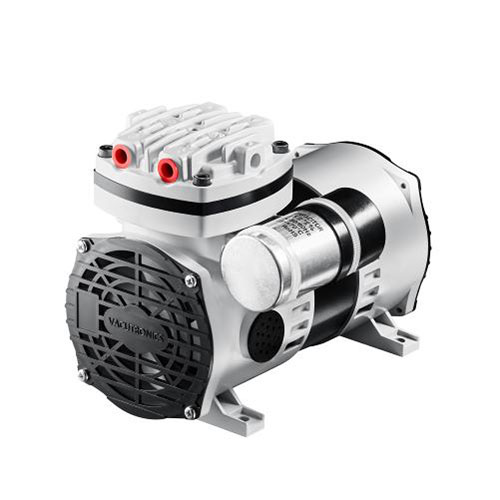

SP-18V

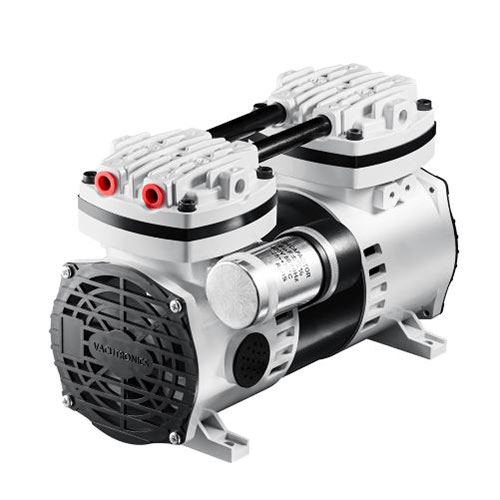

SP-36V

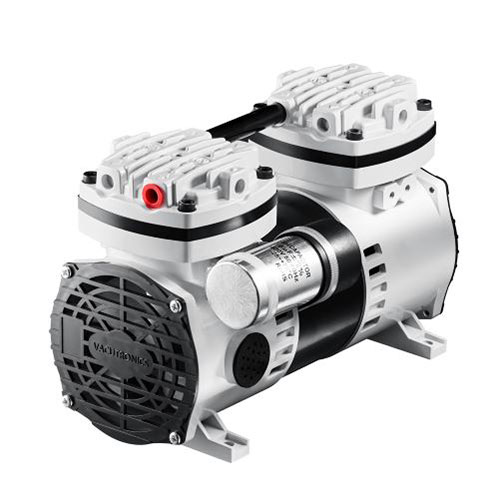

SP-36H
| Model | SP-18V | SP-36V | SP-36H | |
| Frequency | Hz | 50/60 | 50/60 | 50/60 |
| Max. Air Flow | ℓ/min | 30/36 | 54/63 | 31/38 |
| Max. Vacuum | mmHg | -675 | -685 | -740 |
| kPa | -89.9 | -91.3 | -98.6 | |
| Motor Pole | Pole | 4 | 4 | 4 |
| Motor Phase | φ | 1 | 1 | 1 |
| Motor Voltage | Volt | 100-115 OR 200-240 |
||
| Motor Output | Watt | 75W | 105W | 105W |
| Noise Value | db | 54 | 56 | 56 |
| Ambient Temp. | ℃ | 7~40 | 7~40 | 7~40 |

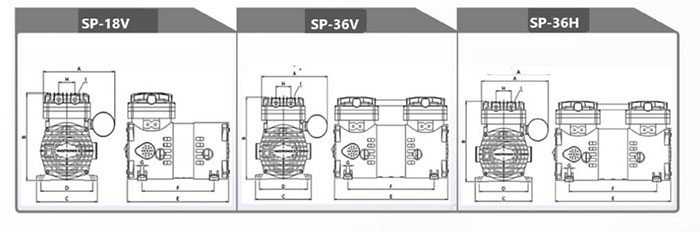

| Model | SP-18V | SP-36V | SP-36H |
| A | 132 | 132 | 132 |
| B | 148 | 148 | 148 |
| C | 112 | 112 | 112 |
| D | 96 | 96 | 96 |
| E | 188 | 228 | 228 |
| F | 132.5 | 172.5 | 172.5 |
| G | φ6 | φ6 | φ6 |
| H | 30 | 30 | 30 |
| I | PT 1/8" | PT 1/8" | PT 1/8" |
| Weight | 3.4 KG | 4.9 KG | 4.8 KG |
