DA Series – Oil less Diaphragm Type Vacuum Pump
PHOTOS

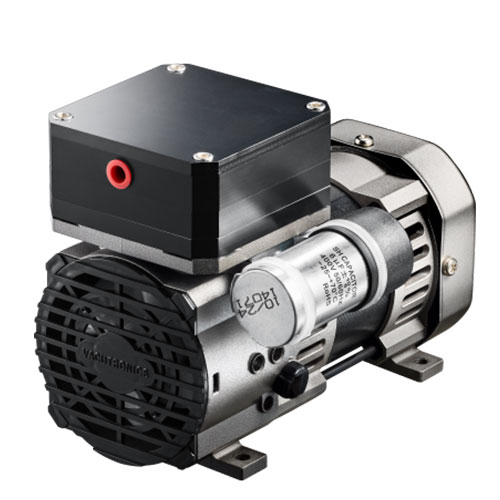

DA-20V

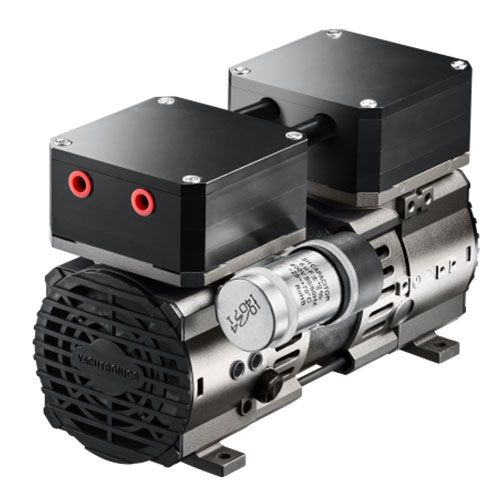

DA-40V
DA-40H
| Model | DA-20V | DA-40V | DA-40H | |
| Frequency | Hz | 50/60 | 50/60 | 50/60 |
| Max. Air Flow | ℓ/min | 18/26 | 34/46 | 18/26 |
| Max. Vacuum | mmHg | -705 | -710 | -754 |
| kPa | -93.9 | -94.6 | -100.5 | |
| Motor Pole | Pole | 4 | 4 | 4 |
| Motor Phase | φ | 1 | 1 | 1 |
| Motor Voltage | Volt | 100-115 OR 200-240 |
||
| Motor Output | Watt | 45W | 65W | 65W |
| Noise Value | db | 50 | 52 | 52 |
| Ambient Temp. | ℃ | 7~40 | 7~40 | 7~40 |

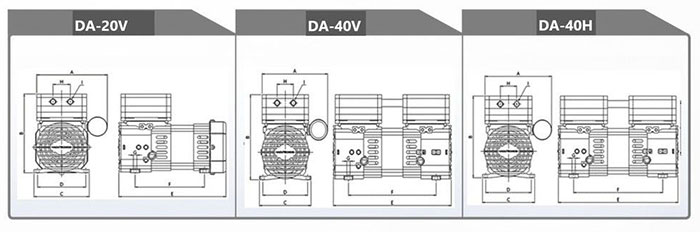

| Model | DA-20V | DA-40V | DA-40H |
| A | 134 | 134 | 134 |
| B | 147 | 147 | 147 |
| C | 102 | 102 | 102 |
| D | 89 | 89 | 89 |
| E | 198 | 235 | 235 |
| F | 127.5 | 173.5 | 173.5 |
| G | φ6 | φ6 | φ6 |
| H | 36 | 36 | 36 |
| I | PT 1/8" | PT 1/8" | PT 1/8" |
| Weight | 4.2 KG | 5.4 KG | 5.3 KG |
