DV-V Series – Oil less Rotary Vane Type Vacuum Pump
PHOTOS

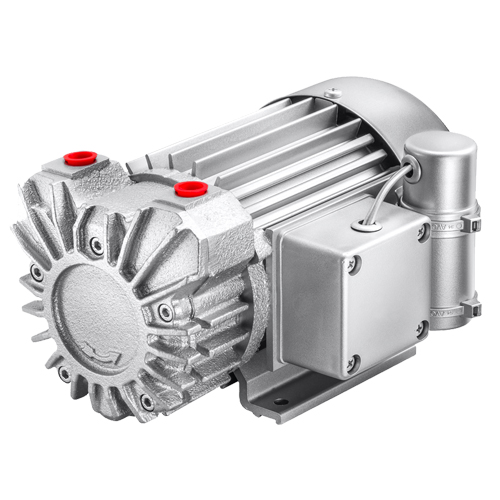

DV-3V, 5V, 8V

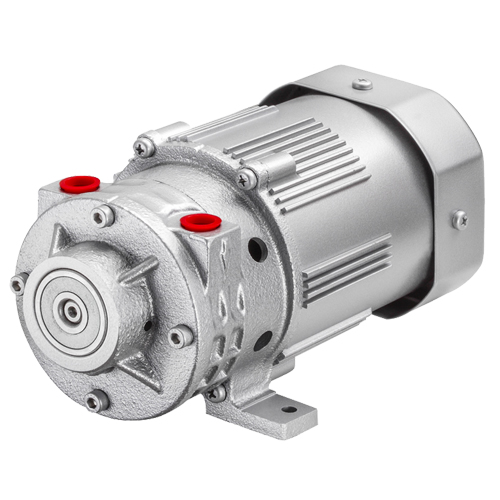

DV-4V

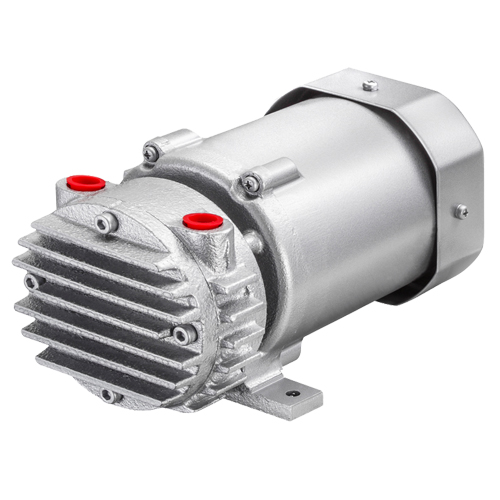

DV-7V
| Model | DV-3V | DV-5V | DV-8V | DV-4V | DV-7V | |
| Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. Air Flow | ℓ/min | 57/70 | 100/113 | 100/120 | 91/104 | 91/104 |
| Max. Vacuum | mmHg | -670/-680 | -670/-680 | -670/-680 | -670/-680 | -670/-680 |
| kPa | -89.3/-90.6 | -89.3/-90.6 | -89.3/-90.6 | -89.3/-90.6 | -89.3/-90.6 | |
| Motor Pole | Pole | 4 | 2 | 4 | 2 | 2 |
| Motor Phase | φ | 1 | 1 | 1 | 1 | 1 |
| Motor Voltage | Volt | 100-115 OR 200-240 |
100-115 OR 200-240 |
|||
| Motor Output | Watt | 250 | 400 | 350 | 180 | 180 |
| Noise Level | dB | 56/58 | 58/60 | 60/62 | 62/65 | 62/65 |
| Ambient Temp. | ℃ | 7~40 | 7~40 | 7~40 | 7~40 | 7~40 |
| Net Weight | Kg | 6.5 | 6.5 | 11.5 | 6.0 | 6.0 |
| Dimensions | Size | |||||
