GA Series – Oil less Diaphragm Type Vacuum Pump
PHOTOS

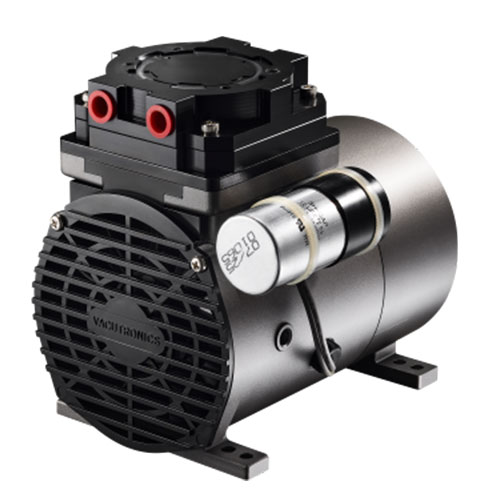

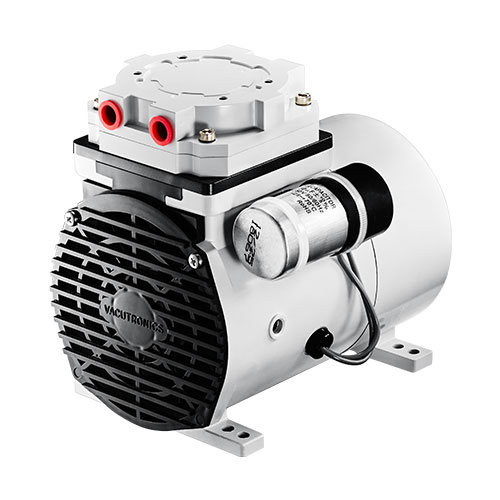

GA-40V

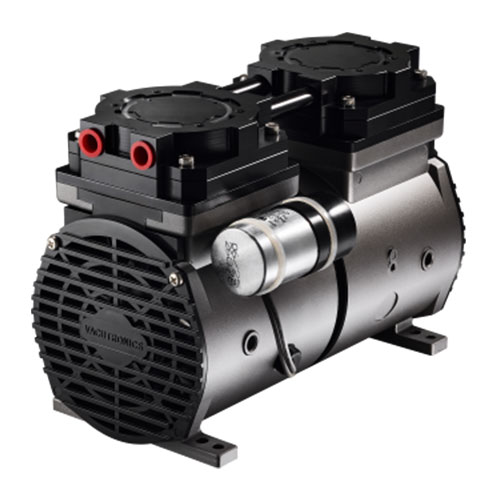

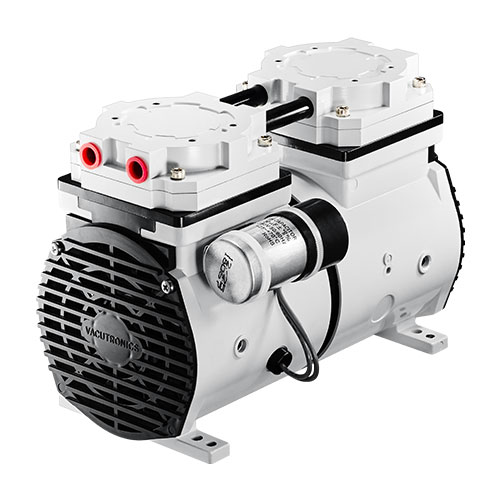

GA-80V

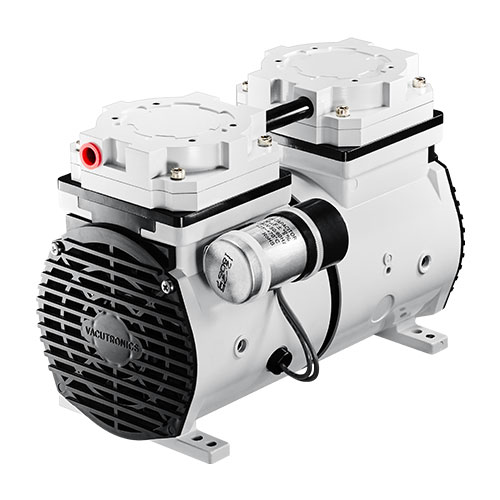

GA-80H
| Model | GA-40V | GA-80V | GA-80H | |
| Frequency | Hz | 50/60 | 50/60 | 50/60 |
| Max. Air Flow | ℓ/min | 61/67 | 90/100 | 63/70 |
| Max. Vacuum | inHg | 25.5 | 25.5 | 28.9 |
| mmHg | -650 | -650 | -735 | |
| Motor Pole | Pole | 4 | 4 | 4 |
| Motor Phase | φ | 1 | 1 | 1 |
| Motor Voltage | Volt | 100-115 OR 200-240 |
||
| Motor Output | Watt | 195W | 230W | 230W |
| Noise Value | db | 60 | 60 | 60 |
| Ambient Temp. | ℃ | 7~40 | 7~40 | 7~40 |

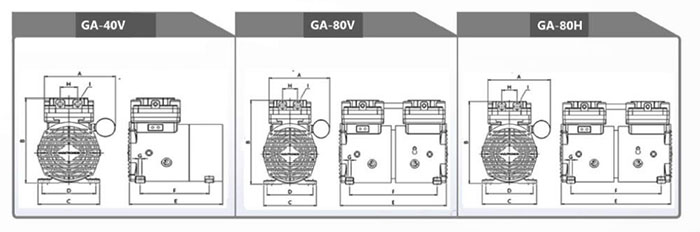

| Model | GA-40V | GA-80V | GA-80H |
| A | 165 | 165 | 165 |
| B | 190 | 190 | 190 |
| C | 128 | 128 | 128 |
| D | 112 | 112 | 112 |
| E | 197 | 262 | 262 |
| F | 144 | 213 | 213 |
| G | φ7 | φ7 | φ7 |
| H | 36 | 36 | 36 |
| I | PT 1/4" | PT 1/4" | PT 1/4" |
| Weight | 7.5 KG | 9.6 KG | 9.5 KG |
